How to create a Responsive Form in Windows Application?

Complete guide to creating responsive forms in Windows applications with adaptive layouts, scaling techniques, and UI optimization.

November 28, 2018 by

Rashmi Kanti

Last Updated: March 2026 | Technology Focus: .NET Framework, WinForms, WPF, MAUI | Reading Time: 18 minutes

Creating responsive forms in Windows applications is no longer optional in 2026. With the rise of touch-enabled Windows devices, hybrid work setups using various screen sizes, and enterprise applications deployed across desktop and tablet environments, developers must build interfaces that adapt seamlessly to different resolutions and orientations.

This comprehensive guide covers responsive form design for Windows applications, from legacy WinForms to modern .NET MAUI approaches. Whether you're maintaining existing desktop software or building new applications, you'll learn proven techniques to make your Windows forms truly responsive.

What makes this guide different: Updated for 2026 development standards, multiple framework approaches, production-ready code examples, performance optimization techniques, and integration with modern Windows features.

Understanding Responsive Design in Desktop Applications

Responsive design in desktop applications means creating user interfaces that automatically adjust layout, control sizes, fonts, and positioning based on the application window's current dimensions and display settings.

Key Differences: Web vs Desktop Responsiveness

Aspect	Web Responsive	Desktop Responsive
Primary Driver	CSS media queries, flexbox, grid	Layout managers, control anchoring, DPI awareness
Screen Size Range	Mobile (320px) to 4K desktop	Desktop monitors (1366px) to 4K/5K displays
Orientation Changes	Very common (mobile rotation)	Less common (tablet mode, multi-monitor)
Input Methods	Touch, mouse, keyboard	Primarily mouse/keyboard, touch on tablets
Framework Support	Native (HTML/CSS)	Requires explicit coding or modern framework

Why Traditional WinForms Lack Responsiveness

Classic Windows Forms applications, built using .NET Framework's WinForms, use absolute positioning by default. When you drag a button onto a form in Visual Studio designer, it's placed at specific X,Y coordinates with fixed width and height pixels. Resize the window, and controls stay exactly where they were placed, creating awkward whitespace or clipped content.

This limitation became apparent as Windows evolved from desktop-only to supporting:

High-DPI displays (4K monitors at 150-200% scaling)
Touch-enabled tablets (Surface devices running full Windows)
Multi-monitor setups (different resolutions across displays)
Hybrid convertibles (switching between laptop and tablet modes)

In QSS Technosoft's experience with desktop application development, enterprises often require Windows software to work seamlessly across diverse device configurations, making responsive design a technical necessity.

Why Responsive Windows Forms Matter in 2026

The business case for responsive Windows applications has strengthened significantly in recent years. Here's why investing in responsive form design delivers concrete value:

1. Device Diversity in Enterprise Environments

Modern businesses deploy Windows applications across:

Traditional desktops - 1920x1080 and 2560x1440 monitors
Laptops - 1366x768 to 3840x2160 (4K)
Windows tablets - Surface devices, industrial tablets
All-in-one touchscreens - Point-of-sale systems, kiosks
Hybrid 2-in-1 devices - Convertible laptops with tablet mode

A non-responsive application looks professional on the developer's 1920x1080 monitor but becomes unusable on a 1366x768 laptop or when scaled to 4K resolution.

2. Accessibility Compliance

Organizations increasingly face accessibility requirements (ADA, WCAG guidelines adapted for desktop). Responsive design enables:

Larger fonts for vision-impaired users without breaking layouts
Touch-friendly controls for users who cannot use mouse precisely
Flexible layouts that accommodate screen readers and assistive technologies

3. High-DPI Display Support

Windows 10 and 11 support 100%, 125%, 150%, 175%, and 200% display scaling. Applications must render correctly across all scaling factors. Non-responsive designs often result in:

Blurry text at high DPI
Clipped controls where text doesn't fit
Inconsistent spacing and alignment

4. Competitive Advantage

While mobile app development has embraced responsive design as standard practice, desktop applications often lag behind. Organizations delivering Windows software with responsive interfaces differentiate themselves, especially in sectors like healthcare, finance, and manufacturing where desktop applications remain dominant.

5. Reduced Maintenance Overhead

One responsive application works across all screen sizes versus maintaining multiple versions or fielding user complaints about usability on different devices.

For businesses evaluating whether to modernize existing Windows applications, our guide on cross-platform app development provides context on alternative approaches including responsive desktop solutions.

Technology Stack Comparison for Responsive Windows Forms

Before implementing responsive design, understanding which framework best suits your project prevents costly rewrites later.

Framework Comparison Matrix

Framework	Release Year	Responsive Support	Learning Curve	Modern Features	Use Case
WinForms	2002	Manual implementation required	Low	Limited	Legacy application maintenance
WPF	2006	Built-in layout system	Medium-High	Good (XAML, data binding)	Rich UI desktop applications
UWP	2015	Excellent responsive support	Medium	Excellent (modern UI)	Windows 10+ exclusive apps
.NET MAUI	2022	Native responsive design	Medium	Cutting-edge	Cross-platform desktop + mobile
Electron	2013	Web-based (CSS responsive)	Low-Medium (web skills)	Web technologies	Cross-platform HTML/CSS/JS apps

Decision Framework

Choose WinForms Responsive Approach If:

Maintaining existing WinForms codebase
Hardware SDK compatibility requires .NET Framework
Team expertise limited to WinForms
Budget constraints prevent full rewrite
Integration with legacy systems or COM components

Migrate to WPF If:

Building new Windows-only application
Need rich graphics and animations
Want modern UI capabilities
Can invest in learning XAML
Require strong data binding and MVVM pattern

Consider .NET MAUI If:

Building new application from scratch
Need Windows + macOS + mobile support
Want single codebase for multiple platforms
Comfortable with modern .NET development
Budget allows for new framework adoption

Evaluate Electron If:

Team skilled in web technologies
Need Windows + macOS + Linux support
Rapid prototyping priority
Can accept larger application size
Web-based UI components already exist

For organizations building applications that span multiple platforms, our analysis of hybrid app development frameworks provides additional context on cross-platform strategies.

WinForms Responsive Implementation: Practical Guide

Despite WinForms' age, many production applications still rely on this framework. Here's how to implement responsive behavior in classic Windows Forms applications.

Core Responsive Technique: Proportional Layout

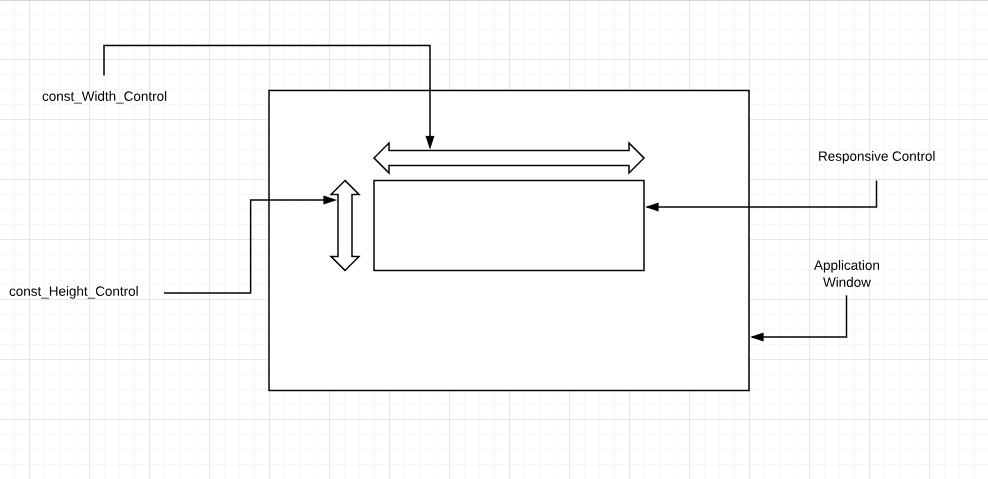

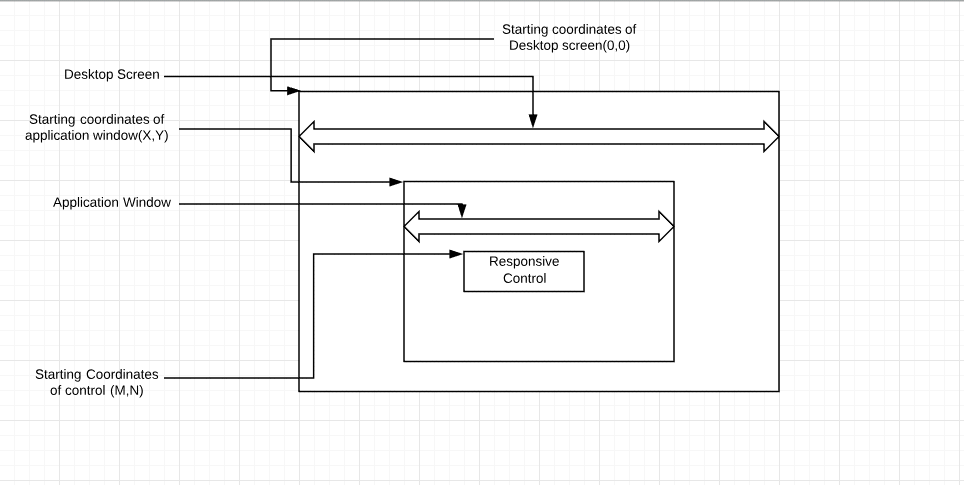

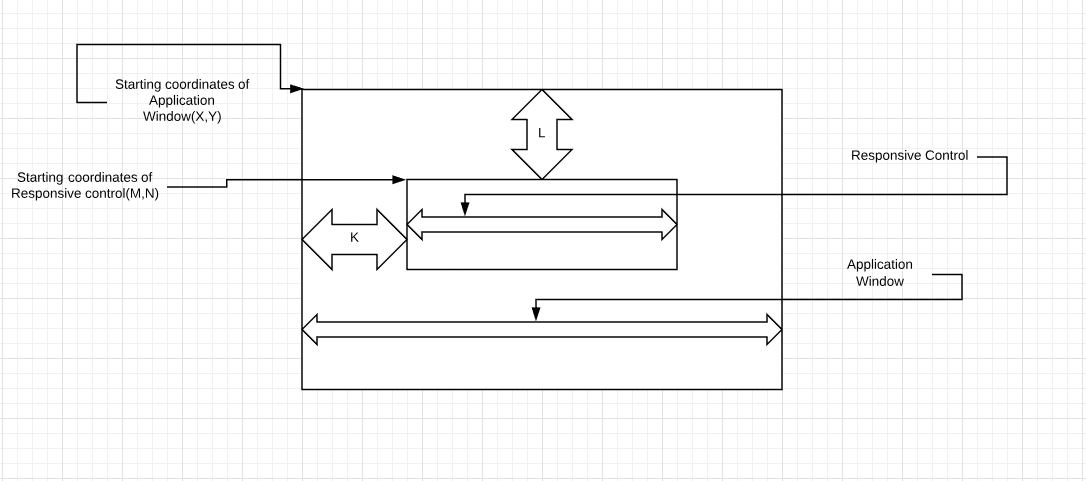

The fundamental approach involves calculating control positions and sizes as percentages of the parent container (form or panel) dimensions.

Conceptual Formula:

Control X Position = Parent X + (Parent Width × Horizontal Percentage)

Control Y Position = Parent Y + (Parent Height × Vertical Percentage)

Control Width = Parent Width × Width Percentage

Control Height = Parent Height × Height Percentage

Font Size = Parent Width × Font Percentage

Example Scenario:

You want a login form where:

Username label positioned at 20% from left, 30% from top
Username textbox positioned at 20% from left, 35% from top
Width of textbox is 60% of form width
Height of textbox is 5% of form height

Step-by-Step Implementation

Step 1: Create WinForms Project

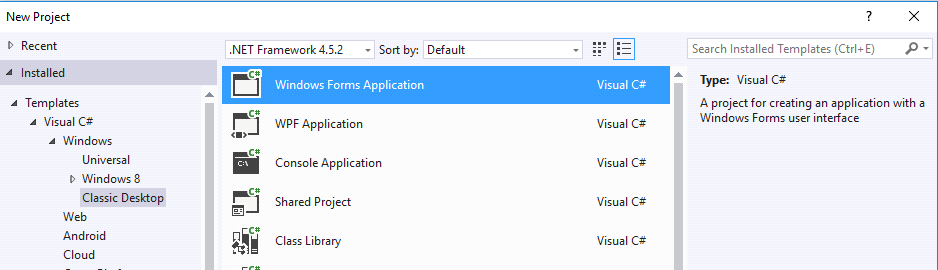

Open Visual Studio 2022, create new Windows Forms App (.NET Framework) project. While newer .NET versions exist, many legacy applications remain on .NET Framework for compatibility reasons.

Step 2: Add User Control for Each Screen

Instead of designing directly on Form1, create user controls for each application screen. This modular approach enables:

Easier responsive layout management per screen
Reusable components across forms
Simplified testing of individual screens

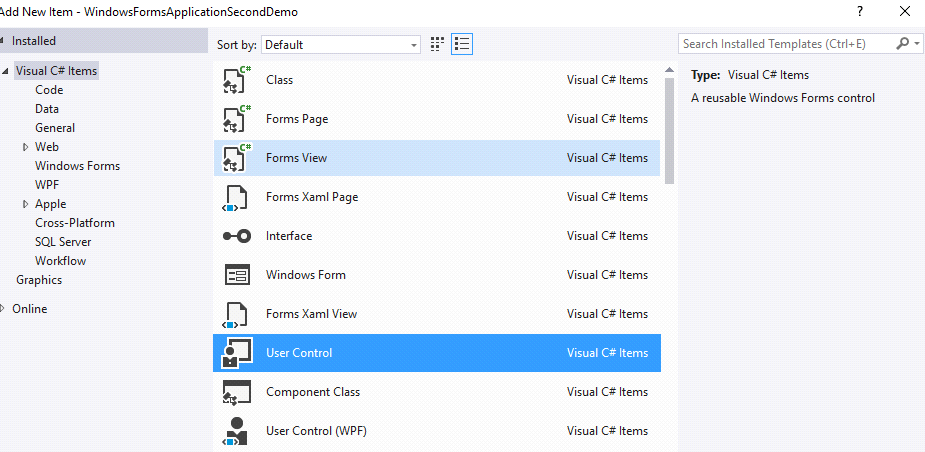

Right-click project → Add → User Control → Name it "LoginControl.cs"

Step 3: Design Initial Layout

Add controls to LoginControl in Visual Studio designer:

Label (lblUsername)
TextBox (txtUsername)
Label (lblPassword)
TextBox (txtPassword)
Button (btnLogin)

Set initial positions and sizes. These will be overridden by responsive code, but provide design-time visual reference.

Step 4: Implement Responsive Layout Method

Create a method that recalculates positions based on current container size:

csharp

private void ApplyResponsiveLayout()

{

// Get parent container dimensions

int containerWidth = this.Width;

int containerHeight = this.Height;

// Calculate base font size proportional to width

// 1/80th of width works well for most cases

float baseFontSize = containerWidth / 80f;

Font baseFont = new Font("Segoe UI", baseFontSize, FontStyle.Regular);

// Username Label

// Position: 10% from left, 20% from top

// Size: 30% width, 5% height

lblUsername.Location = new Point(

(int)(containerWidth * 0.10),

(int)(containerHeight * 0.20)

);

lblUsername.Size = new Size(

(int)(containerWidth * 0.30),

(int)(containerHeight * 0.05)

);

lblUsername.Font = baseFont;

// Username TextBox

// Position: 10% from left, 26% from top (just below label)

// Size: 80% width, 6% height

txtUsername.Location = new Point(

(int)(containerWidth * 0.10),

(int)(containerHeight * 0.26)

);

txtUsername.Size = new Size(

(int)(containerWidth * 0.80),

(int)(containerHeight * 0.06)

);

txtUsername.Font = baseFont;

// Password Label

lblPassword.Location = new Point(

(int)(containerWidth * 0.10),

(int)(containerHeight * 0.35)

);

lblPassword.Size = new Size(

(int)(containerWidth * 0.30),

(int)(containerHeight * 0.05)

);

lblPassword.Font = baseFont;

// Password TextBox

txtPassword.Location = new Point(

(int)(containerWidth * 0.10),

(int)(containerHeight * 0.41)

);

txtPassword.Size = new Size(

(int)(containerWidth * 0.80),

(int)(containerHeight * 0.06)

);

txtPassword.Font = baseFont;

txtPassword.PasswordChar = '*';

// Login Button

// Center horizontally: (100% - 30%) / 2 = 35% from left

// Position vertically: 55% from top

btnLogin.Location = new Point(

(int)(containerWidth * 0.35),

(int)(containerHeight * 0.55)

);

btnLogin.Size = new Size(

(int)(containerWidth * 0.30),

(int)(containerHeight * 0.08)

);

btnLogin.Font = new Font("Segoe UI", baseFontSize * 1.1f, FontStyle.Bold);

}

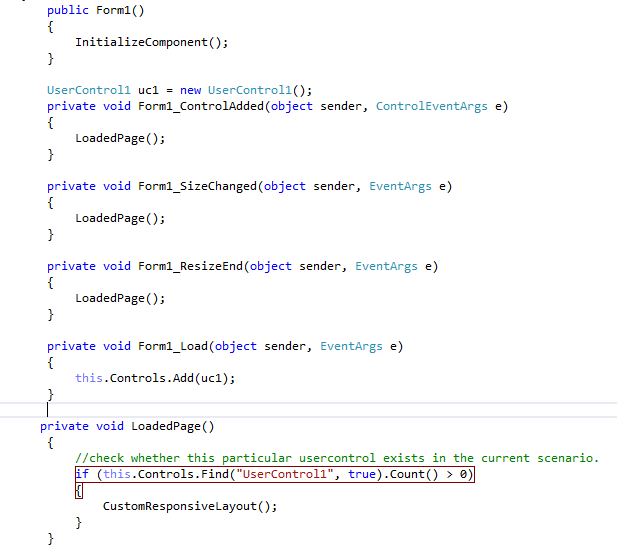

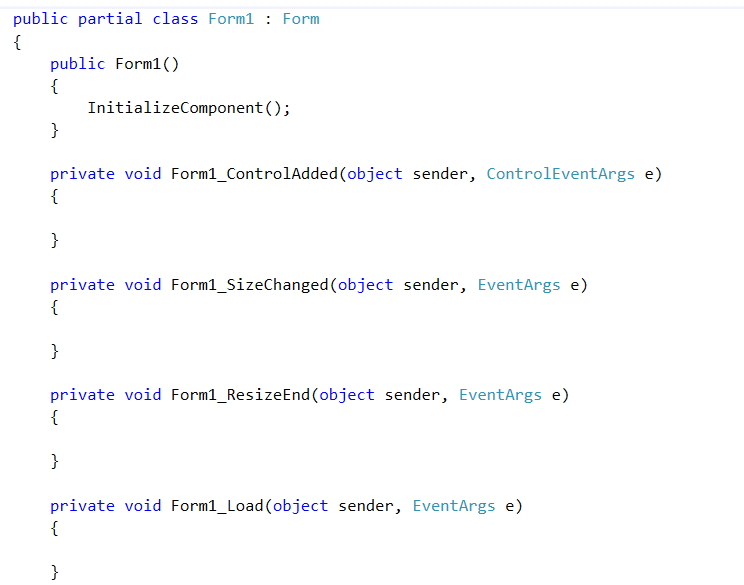

Step 5: Hook Responsive Method to Form Events

The responsive layout must recalculate whenever the form size changes. Connect the method to these events in the main form:

csharp

public partial class MainForm : Form

{

private LoginControl loginControl;

public MainForm()

{

InitializeComponent();

// Create and add login control

loginControl = new LoginControl();

loginControl.Dock = DockStyle.Fill;

this.Controls.Add(loginControl);

// Wire up responsive events

this.Load += MainForm_Load;

this.Resize += MainForm_Resize;

this.SizeChanged += MainForm_SizeChanged;

this.ResizeEnd += MainForm_ResizeEnd;

this.ControlAdded += MainForm_ControlAdded;

}

private void MainForm_Load(object sender, EventArgs e)

{

ApplyResponsiveToCurrentControl();

}

private void MainForm_Resize(object sender, EventArgs e)

{

ApplyResponsiveToCurrentControl();

}

private void MainForm_SizeChanged(object sender, EventArgs e)

{

ApplyResponsiveToCurrentControl();

}

private void MainForm_ResizeEnd(object sender, EventArgs e)

{

ApplyResponsiveToCurrentControl();

}

private void MainForm_ControlAdded(object sender, ControlEventArgs e)

{

ApplyResponsiveToCurrentControl();

}

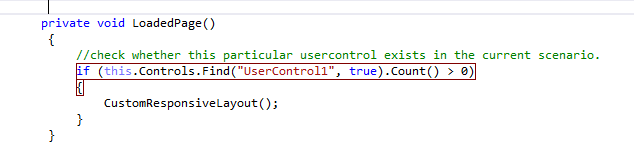

private void ApplyResponsiveToCurrentControl()

{

// Check which user control is loaded

foreach (Control control in this.Controls)

{

if (control is LoginControl loginCtrl)

{

loginCtrl.ApplyResponsiveLayout();

break;

}

// Add cases for other user controls as needed

}

Why Multiple Events:

Load: Initial layout when form first appears
Resize: Continuous updates during drag-resize
SizeChanged: Catches programmatic size changes
ResizeEnd: Final adjustment when resize completes
ControlAdded: Ensures layout when controls dynamically added

Advanced Responsive Techniques

Responsive Image Scaling

PictureBoxes need special handling to prevent distortion:

csharp

private void ScaleImageControl(PictureBox pictureBox, double widthPercent, double heightPercent)

{

int containerWidth = this.Width;

int containerHeight = this.Height;

pictureBox.Size = new Size(

(int)(containerWidth * widthPercent),

(int)(containerHeight * heightPercent)

);

// Maintain aspect ratio

pictureBox.SizeMode = PictureBoxSizeMode.Zoom;

}

Responsive DataGridView

DataGridView columns should resize proportionally:

csharp

private void ApplyResponsiveDataGrid(DataGridView grid)

{

// Set grid to fill available space

grid.Dock = DockStyle.Fill;

// Distribute column widths as percentages

if (grid.Columns.Count > 0)

{

grid.Columns[0].Width = (int)(grid.Width * 0.15); // ID column: 15%

grid.Columns[1].Width = (int)(grid.Width * 0.35); // Name column: 35%

grid.Columns[2].Width = (int)(grid.Width * 0.25); // Email column: 25%

grid.Columns[3].Width = (int)(grid.Width * 0.25); // Phone column: 25%

}

// Auto-size row heights

grid.AutoSizeRowsMode = DataGridViewAutoSizeRowsMode.AllCells;

}

Minimum and Maximum Size Constraints

Prevent controls from becoming unusably small or large:

csharp

private void ApplyResponsiveLayoutWithConstraints()

{

int containerWidth = this.Width;

int containerHeight = this.Height;

// Calculate desired button size

int desiredWidth = (int)(containerWidth * 0.30);

int desiredHeight = (int)(containerHeight * 0.08);

// Apply constraints

int finalWidth = Math.Max(100, Math.Min(400, desiredWidth)); // Min 100px, Max 400px

int finalHeight = Math.Max(30, Math.Min(80, desiredHeight)); // Min 30px, Max 80px

btnLogin.Size = new Size(finalWidth, finalHeight);

}

Performance Optimization for Responsive WinForms

SuspendLayout During Bulk Updates

When repositioning many controls, suspend layout calculations:

csharp

private void ApplyResponsiveLayout()

{

this.SuspendLayout();

try

{

// All control repositioning code here

lblUsername.Location = new Point(...);

txtUsername.Size = new Size(...);

// ... etc

}

finally

{

this.ResumeLayout(true);

}

This prevents flickering and improves performance by batching layout calculations.

Debounce Resize Events

Avoid excessive calculations during drag-resize:

csharp

private System.Windows.Forms.Timer resizeTimer;

private bool resizeInProgress = false;

public MainForm()

{

InitializeComponent();

resizeTimer = new System.Windows.Forms.Timer();

resizeTimer.Interval = 100; // 100ms delay

resizeTimer.Tick += ResizeTimer_Tick;

}

private void MainForm_Resize(object sender, EventArgs e)

{

resizeInProgress = true;

resizeTimer.Stop();

resizeTimer.Start();

}

private void ResizeTimer_Tick(object sender, EventArgs e)

{

resizeTimer.Stop();

if (resizeInProgress)

{

ApplyResponsiveToCurrentControl();

resizeInProgress = false;

}

For applications requiring high-performance UI updates, our expertise in ASP.NET development and desktop optimization can provide additional architectural guidance.

WPF Responsive Approach: Modern Layout System

Windows Presentation Foundation (WPF) provides built-in responsive capabilities through its layout system, making responsive design far easier than manual WinForms coding.

WPF Layout Containers

Grid - Most Versatile

Grid uses rows and columns with proportional sizing:

xml

<Window x:Class="ResponsiveWPF.MainWindow"

xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

Title="Responsive Login" Height="450" Width="800">

<Grid>

<Grid.ColumnDefinitions>

</Grid.ColumnDefinitions>

<Grid.RowDefinitions>

</Grid.RowDefinitions>

<TextBlock Grid.Column="1" Grid.Row="1"

Text="Username:"

Margin="0,0,0,5"

FontSize="{Binding RelativeSource={RelativeSource AncestorType=Window}, Path=ActualWidth, Converter={StaticResource WidthToFontSizeConverter}}"/>

<TextBox Grid.Column="1" Grid.Row="2"

Height="40"

Margin="0,0,0,15"/>

<TextBlock Grid.Column="1" Grid.Row="3"

Text="Password:"

Margin="0,0,0,5"/>

<PasswordBox Grid.Column="1" Grid.Row="4"

Height="40"

Margin="0,0,0,20"/>

<Button Grid.Column="1" Grid.Row="5"

Content="Login"

Height="50"

VerticalAlignment="Top"

HorizontalAlignment="Center"

Width="200"/>

</Grid>

</Window>

StackPanel - Sequential Layouts

Automatically stacks controls vertically or horizontally:

xml

</StackPanel>

DockPanel - Edge-Aligned Layouts

Docks controls to edges with one filling remaining space:

xml

</Menu>

</StatusBar>

<Grid>

</Grid>

</DockPanel>

WPF Responsive Font Sizing

Create value converter for proportional font sizes:

csharp

public class WidthToFontSizeConverter : IValueConverter

{

public object Convert(object value, Type targetType, object parameter, CultureInfo culture)

{

if (value is double width)

{

// Font size is 1/40th of window width

double fontSize = width / 40;

// Constrain between 10 and 24 points

return Math.Max(10, Math.Min(24, fontSize));

}

return 14; // Default fallback

}

public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)

{

throw new NotImplementedException();

}

xml

<Application.Resources>

<local:WidthToFontSizeConverter x:Key="WidthToFontSizeConverter"/>

</Application.Resources>

WPF ViewBox for Automatic Scaling

ViewBox automatically scales child content:

xml

</Grid>

</Viewbox>

ViewBox maintains aspect ratio while filling available space. Ideal for:

Dashboards with fixed layout that should scale
Data visualizations needing proportional scaling
Kiosk applications deployed on various screen sizes

For teams considering WPF for new projects, our .NET development expertise includes modern desktop application architecture and XAML-based UI design.

Modern .NET MAUI Solution for Cross-Platform Responsive Design

.NET Multi-platform App UI (MAUI) represents Microsoft's modern approach to building desktop and mobile applications from a single codebase. It includes powerful responsive design capabilities by default.

MAUI Layout System

Grid with Adaptive Layout

xml

<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"

xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"

x:Class="ResponsiveMAUI.LoginPage">

<Grid.RowDefinitions>

</Grid.RowDefinitions>

</Grid>

</ContentPage>

Adaptive Layout Based on Platform

MAUI allows platform-specific adjustments:

xml

<Grid>

<Grid.ColumnDefinitions>

<ColumnDefinition.Width>

</OnPlatform>

</ColumnDefinition.Width>

</ColumnDefinition>

</Grid.ColumnDefinitions>

</StackPanel>

</ContentView>

</Grid>

Responsive Breakpoints

Implement adaptive layout based on window width:

csharp

protected override void OnSizeAllocated(double width, double height)

{

base.OnSizeAllocated(width, height);

if (width >= 1024)

{

// Desktop layout - two columns

MainGrid.ColumnDefinitions.Clear();

MainGrid.ColumnDefinitions.Add(new ColumnDefinition { Width = new GridLength(300) });

MainGrid.ColumnDefinitions.Add(new ColumnDefinition { Width = new GridLength(1, GridUnitType.Star) });

Grid.SetColumn(NavigationPanel, 0);

Grid.SetColumn(ContentArea, 1);

}

else if (width >= 600)

{

// Tablet layout - collapsible sidebar

MainGrid.ColumnDefinitions.Clear();

MainGrid.ColumnDefinitions.Add(new ColumnDefinition { Width = new GridLength(250) });

MainGrid.ColumnDefinitions.Add(new ColumnDefinition { Width = new GridLength(1, GridUnitType.Star) });

Grid.SetColumn(NavigationPanel, 0);

Grid.SetColumn(ContentArea, 1);

}

else

{

// Mobile layout - single column with hamburger menu

MainGrid.ColumnDefinitions.Clear();

MainGrid.ColumnDefinitions.Add(new ColumnDefinition { Width = new GridLength(1, GridUnitType.Star) });

NavigationPanel.IsVisible = false; // Show via hamburger menu instead

Grid.SetColumn(ContentArea, 0);

}

For organizations evaluating cross-platform development strategies, our analysis of Flutter app development and React Native development provides comparative insights into alternative frameworks.

Performance Optimization for Responsive Desktop Applications

Responsive layouts can impact performance if not implemented efficiently. Here's how to maintain smooth user experience.

Rendering Performance Metrics

Target performance benchmarks for responsive layout updates:

Initial load: < 100ms for layout calculation
Resize during drag: Maintain 60 FPS (16.67ms frame time)
Font size updates: < 50ms
Control repositioning: < 30ms for 20-30 controls

WinForms Optimization Strategies

1. Batch Control Updates

csharp

private void ApplyResponsiveLayout()

{

// Suspend layout calculations

this.SuspendLayout();

// Cache frequently used values

int width = this.Width;

int height = this.Height;

float fontBase = width / 80f;

try

{

// Update all controls

UpdateControl(lblUsername, 0.10, 0.20, 0.30, 0.05, fontBase);

UpdateControl(txtUsername, 0.10, 0.26, 0.80, 0.06, fontBase);

// ... more controls

}

finally

{

this.ResumeLayout(true);

}

private void UpdateControl(Control control, double xPercent, double yPercent,

double widthPercent, double heightPercent, float fontSize)

{

int width = this.Width;

int height = this.Height;

control.SetBounds(

(int)(width * xPercent),

(int)(height * yPercent),

(int)(width * widthPercent),

(int)(height * heightPercent)

);

if (control is Label || control is Button || control is TextBox)

{

control.Font = new Font("Segoe UI", fontSize);

}

2. Avoid Frequent Font Object Creation

Font objects are expensive to create. Cache them:

csharp

private Dictionary<int, Font> fontCache = new Dictionary<int, Font>();

private Font GetCachedFont(int size)

{

if (!fontCache.ContainsKey(size))

{

fontCache[size] = new Font("Segoe UI", size);

}

return fontCache[size];

}

// Usage

control.Font = GetCachedFont(12);

3. Use Double Buffering

Enable double buffering to prevent flicker:

csharp

public MainForm()

{

InitializeComponent();

// Enable double buffering for smooth rendering

this.DoubleBuffered = true;

this.SetStyle(ControlStyles.OptimizedDoubleBuffer |

ControlStyles.AllPaintingInWmPaint |

ControlStyles.UserPaint, true);

this.UpdateStyles();

}

WPF Performance Optimization

1. Virtualization for Lists

Enable UI virtualization for large data sets:

xml

<ListBox VirtualizingStackPanel.IsVirtualizing="True"

VirtualizingStackPanel.VirtualizationMode="Recycling">

</ListBox>

2. Freeze Freezable Objects

Freeze brushes, pens, and other freezable objects for better performance:

csharp

SolidColorBrush brush = new SolidColorBrush(Colors.Blue);

brush.Freeze(); // Makes brush immutable and thread-safe

control.Background = brush;

3. Reduce Layout Passes

Avoid nested layout containers when possible:

xml

<Grid>

</Grid>

</StackPanel>

<Grid>

</Grid>

For applications with complex UI requirements and performance concerns, our web application development team has expertise in optimizing rendering performance across platforms.

Testing Responsive Layouts Across Resolutions

Comprehensive testing ensures responsive layouts work across real-world scenarios.

Testing Matrix

Resolution	Scale	Aspect Ratio	Device Type	Priority
1366x768	100%	16:9	Budget laptops	High
1920x1080	100%	16:9	Standard desktops	High
1920x1080	125%	16:9	High-DPI laptops	High
2560x1440	150%	16:9	2K monitors	Medium
3840x2160	200%	16:9	4K monitors	Medium
2736x1824	200%	3:2	Surface Pro	High (if tablet support)
1280x800	100%	16:10	Older displays	Low

Automated Testing Approach

Create automated tests that verify layout at different sizes:

csharp

[TestClass]

public class ResponsiveLayoutTests

{

[TestMethod]

public void TestLayout_At_1366x768()

{

var form = new MainForm();

form.Size = new Size(1366, 768);

form.Show();

// Force layout update

Application.DoEvents();

// Verify control positions

Assert.IsTrue(form.Controls["btnLogin"].Width >= 100);

Assert.IsTrue(form.Controls["btnLogin"].Width <= 400);

Assert.IsTrue(form.Controls["txtUsername"].Right < form.ClientSize.Width);

form.Close();

}

[TestMethod]

public void TestLayout_At_3840x2160()

{

var form = new MainForm();

form.Size = new Size(3840, 2160);

form.Show();

Application.DoEvents();

// Verify controls didn't become unusably large

Assert.IsTrue(form.Controls["btnLogin"].Height <= 120);

Assert.IsTrue(form.Controls["btnLogin"].Font.Size <= 24);

form.Close();

}

Manual Testing Checklist

Test minimum supported window size
Test maximum expected window size
Test 125%, 150%, 175%, 200% DPI scaling
Test rapid window resize (drag edges quickly)
Test maximized state
Test multi-monitor setup (different DPI per monitor)
Test portrait and landscape orientations (tablets)
Verify fonts remain readable at all sizes
Check for control overlap or clipping
Ensure hit targets large enough for touch (minimum 44x44 pixels)

DPI Testing on Single Machine

Force different DPI settings for testing:

csharp

// Add app.manifest with DPI awareness settings

<dpiAwareness xmlns="http://schemas.microsoft.com/SMI/2016/WindowsSettings">PerMonitorV2</dpiAwareness>

</windowsSettings>

</application>

For organizations requiring comprehensive QA across devices and resolutions, our QA and testing services include responsive design validation.

Real-World Use Cases and Industry Applications

Responsive Windows applications solve concrete business problems across industries.

Healthcare: Medical Imaging Workstations

Radiologists use Windows applications on various monitors (1080p standard, 4K medical-grade displays). Responsive DICOM viewer ensures:

Image thumbnails scale appropriately
Measurement tools remain accessible
Patient data panels resize without information loss
Touch-friendly controls for tablet-based point-of-care systems

Our experience with healthcare software development includes DICOM viewers and medical record systems requiring precise responsive design.

Manufacturing: Industrial HMI Applications

Factory floor applications run on:

Standard desktop terminals
Industrial touchscreens (10"-21" displays)
Ruggedized tablets for mobile workers

Responsive design enables single application deployment across all interfaces. Learn more about our work in IoT development for manufacturing environments.

Financial Services: Trading Platforms

Financial traders use multi-monitor setups with mixed resolutions. Responsive layouts allow:

Charts filling entire 4K monitors without pixelation
Order entry forms optimized for specific screen sizes
Ticker displays adapting to available width

Our fintech app development expertise includes real-time trading platforms and financial data visualization.

Retail: Point-of-Sale Systems

Modern POS systems must work on:

Traditional desktop monitors (cashiers)
Touchscreen terminals (self-checkout)
Tablets (mobile sales associates)

Single responsive application reduces training complexity and maintenance overhead. Explore our ecommerce app development services for retail solutions.

Education: E-Learning Platforms

Educational software deployed across:

School computer labs (various ages of hardware)
Student laptops (wide range of specifications)
Interactive whiteboards (large touchscreens)

Responsive design ensures consistent learning experience regardless of device. See our e-learning app development portfolio.

Migration Strategy: Legacy to Responsive

Organizations with existing non-responsive Windows applications face migration decisions. Here's a phased approach.

Assessment Phase (Week 1-2)

Inventory current application
- Count total forms/screens
- Identify complex vs simple layouts
- Document external dependencies (hardware SDKs, COM components)
- Measure current codebase size
Evaluate user devices
- Survey actual resolutions in use
- Identify DPI scaling requirements
- Determine touch vs mouse-only usage
Cost-benefit analysis
- Calculate development effort for responsive upgrade
- Estimate ongoing maintenance savings
- Assess user productivity improvements

Decision Matrix

Current State	Recommendation	Approach
Small WinForms app (5-10 screens)	Add responsive code	Implement proportional layout as shown earlier
Medium WinForms app (11-30 screens)	Hybrid: responsive + selective rewrite	Responsive for simple screens, WPF for complex
Large WinForms app (30+ screens)	Gradual WPF migration	Migrate high-value screens first
Green-field project	.NET MAUI	Build responsive from start

Implementation Phase

Option 1: In-Place Responsive Enhancement

For WinForms applications staying on WinForms:

Week 1-2: Create responsive base classes Week 3-4: Retrofit 3-5 pilot screens Week 5-8: Roll out to all screens Week 9-10: Testing and refinement

Option 2: Hybrid WinForms + WPF

Host WPF user controls within WinForms application:

csharp

// WinForms hosting WPF

System.Windows.Forms.Integration.ElementHost host = new ElementHost();

host.Dock = DockStyle.Fill;

// Create WPF user control

var wpfControl = new MyWpfUserControl();

host.Child = wpfControl;

this.Controls.Add(host);

This allows gradual migration of complex screens to WPF while maintaining existing WinForms infrastructure.

Option 3: Complete Framework Migration

Rewrite application in WPF or .NET MAUI:

Phase 1 (Months 1-2): Architecture and infrastructure Phase 2 (Months 3-6): Core functionality migration Phase 3 (Months 7-8): Advanced features and optimization Phase 4 (Month 9): Testing, deployment, training

For organizations considering major application modernization, our custom software development practice provides end-to-end migration services.

Common Pitfalls and How to Avoid Them

Learn from common mistakes in responsive Windows application development.

Pitfall 1: Forgetting Minimum Size Constraints

Problem: Controls become unusably small on low resolutions or small windows.

Solution: Always set minimum window size and constrain control dimensions:

csharp

public MainForm()

{

InitializeComponent();

this.MinimumSize = new Size(800, 600);

}

private void ApplyResponsiveLayout()

{

// Calculate size

int calculatedWidth = (int)(this.Width * 0.30);

// Apply constraint

int finalWidth = Math.Max(100, calculatedWidth); // Never smaller than 100px

btnLogin.Width = finalWidth;

}

Pitfall 2: Performance Issues with Too Many Resize Events

Problem: Application lags during window resize due to continuous layout recalculation.

Solution: Implement debouncing or only update on ResizeEnd for less critical updates.

Pitfall 3: Hardcoded Pixel Margins

Problem: Fixed 10px margins look fine at 1080p but disproportionate at 4K.

Solution: Make margins proportional or use DPI-aware values:

csharp

int marginSize = Math.Max(5, (int)(this.Width * 0.01)); // 1% of width, minimum 5px

control.Margin = new Padding(marginSize);

Pitfall 4: Ignoring Font Scaling

Problem: Text becomes unreadable at high DPI or illegible at low resolutions.

Solution: Scale fonts proportionally with container size and set minimum/maximum bounds.

Pitfall 5: Assuming Landscape Orientation

Problem: Layout breaks when tablet rotated to portrait mode.

Solution: Design for both orientations or lock orientation if appropriate:

csharp

protected override void OnSizeChanged(EventArgs e)

{

base.OnSizeChanged(e);

if (this.Width > this.Height)

{

// Landscape layout

}

else

{

// Portrait layout or warn user to rotate

}

Pitfall 6: Not Testing with Real Data

Problem: Layout works with "Username" label but breaks with "Email Address (Corporate Account)" in production.

Solution: Test with realistic, long text strings during development. Use TextRenderer.MeasureText to ensure text fits.

Recommended Next Steps and Resources

For WinForms Developers:

Start with single user control or form as pilot
Implement proportional layout technique shown in this guide
Test across target resolutions
Expand to additional screens incrementally
Consider WPF for new feature development

For Teams Starting New Projects:

Evaluate .NET MAUI for cross-platform support
Use WPF if Windows-only with rich UI requirements
Design mobile-first if targeting tablets heavily
Plan responsive layouts from project start, not as afterthought

Additional QSS Technosoft Resources:

For broader context on desktop and mobile application development strategies:

Desktop Application Development - Comprehensive guides on Windows development
Mobile App Development - Cross-platform mobile strategies
Custom Software Development - Tailored application development approaches
Cross-Platform App Development - Framework comparisons and best practices

For specific technology expertise:

.NET Development - ASP.NET and desktop frameworks
Xamarin Development - Xamarin Forms responsive design
React Native Development - Alternative cross-platform approach
Flutter Development - Google's cross-platform framework

External Learning Resources:

Microsoft Docs: WPF Layout System
Microsoft Docs: .NET MAUI Layouts
Windows Forms Programming in C# (book by Chris Sells)
Pro WPF in C# (book by Matthew MacDonald)

Conclusion: Building Future-Proof Responsive Windows Applications

Responsive design is no longer optional for Windows desktop applications. As organizations deploy software across increasingly diverse device configurations, from budget laptops to high-DPI 4K displays, applications must adapt seamlessly to provide consistent user experiences.

This guide has shown that responsive Windows applications are achievable regardless of framework choice. Legacy WinForms applications can be retrofitted with proportional layout techniques. WPF provides powerful built-in layout systems. Modern .NET MAUI offers cross-platform responsive design from the ground up.

The key takeaways:

1. Start with user needs. Survey actual devices and resolutions in your deployment environment before architecting responsive strategy.

2. Choose appropriate framework. WinForms manual approach works for legacy maintenance. WPF balances modern features with Windows-specific optimization. .NET MAUI suits new cross-platform projects.

3. Performance matters. Implement debouncing, layout suspension, and caching to maintain smooth interactions during resize operations.

4. Test comprehensively. Automated and manual testing across resolution matrix ensures production reliability.

5. Plan for maintenance. Responsive code is an investment that reduces long-term support costs by eliminating device-specific workarounds.

"At QSS Technosoft, we've implemented responsive Windows applications across healthcare, manufacturing, finance, and retail sectors. Our development teams specialize in modernizing legacy desktop applications while maintaining compatibility with existing systems and hardware integrations."

Whether you're enhancing existing WinForms applications, migrating to modern frameworks, or building new cross-platform solutions, we bring technical expertise and industry-specific knowledge to deliver responsive desktop applications that work flawlessly across your entire device ecosystem.

Ready to modernize your Windows application? Contact our desktop application development team to discuss responsive design strategies tailored to your specific requirements, technology stack, and business objectives.

About the Author: This guide was created by the QSS Technosoft engineering team, specialists in desktop application development, Windows Forms, WPF, and .NET MAUI technologies with over 15 years of experience delivering enterprise desktop solutions.

in Desktop Application Development
